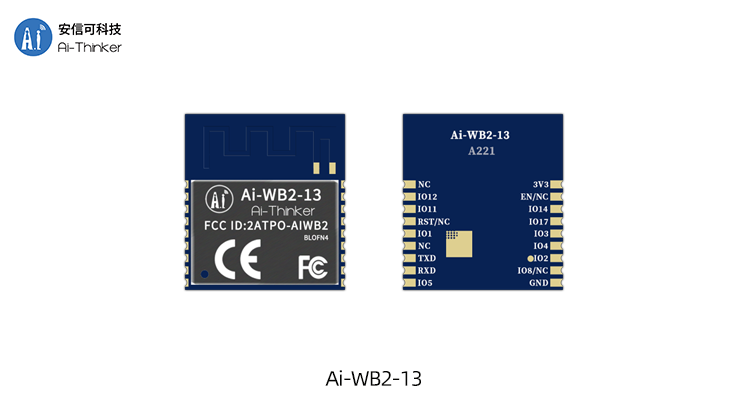

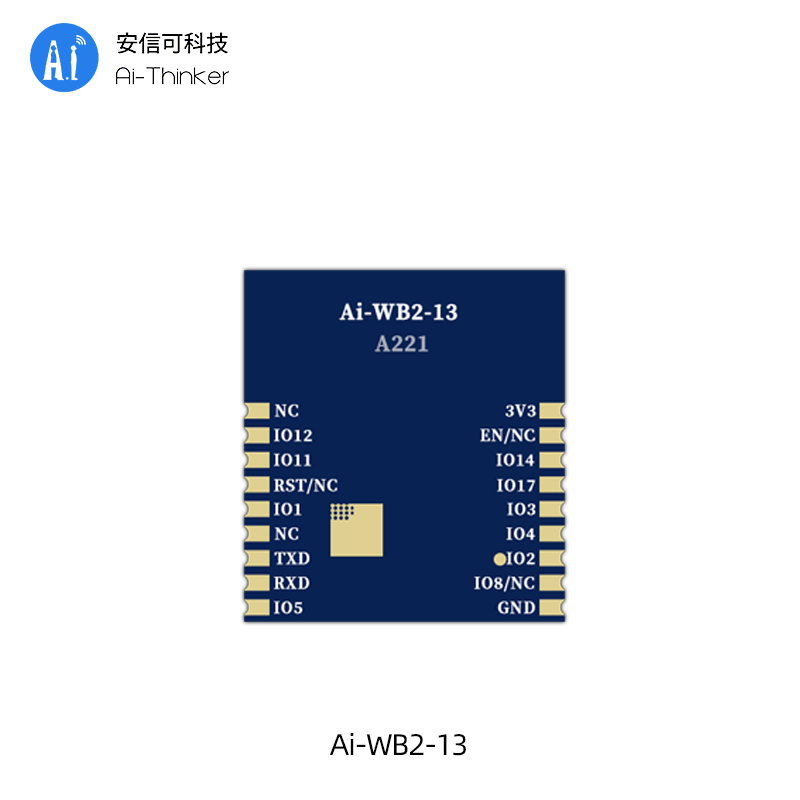

Ai-Thinker Ai-WB2-13 Wi-Fi + Bluetooth BLE 5.0 Module

Ai-Thinker Ai-WB2-13 Wi-Fi Bluetooth BLE 5.0 BL602 Wireless Module with PCB Antenna

Ai-WB2-13 is a compact Wi-Fi and Bluetooth BLE 5.0 combo module from Ai-Thinker based on the BL602 chipset. Featuring low power consumption, Bluetooth Mesh support, advanced security features, and rich peripheral interfaces, it is ideal for IoT devices, smart home systems, industrial automation, wearable electronics, and embedded wireless applications

SKU: AITWB213 Category: Combo Modules Tags: Ai-Thinker, AiWB213, BL602, BLE 5.0, Bluetooth Mesh, Bluetooth Module, Combo Module, Embedded Wireless, Industrial IoT, IoT Connectivity, Low Power Module, Smart Home Module, WiFi Module, Wireless IoT Module

Description

The Ai-WB2-13 is a high-performance Wi-Fi and Bluetooth Low Energy (BLE 5.0) wireless module developed by Ai-Thinker and powered by the BL602 processor platform. The module supports IEEE 802.11 b/g/n Wi-Fi connectivity and Bluetooth Mesh networking, providing a reliable wireless solution for modern IoT and embedded systems.

Built around a low-power 32-bit RISC processor with 276KB RAM, the module integrates Wi-Fi MAC/BB/RF/PA/LNA and Bluetooth functionality while offering multiple hardware interfaces including UART, SPI, I²C, ADC, PWM, DAC, SDIO, PIR, and GPIO. It supports secure boot, AES encryption, SHA acceleration, TRNG, and SDK-based development environments for rapid product integration.

The compact design and ultra-low deep sleep current make Ai-WB2-13 suitable for battery-powered products and industrial wireless deployments.

Features

BL602 low-power wireless chipset
IEEE 802.11 b/g/n Wi-Fi support
Bluetooth BLE 5.0 and Bluetooth Mesh
32-bit RISC CPU with 276KB RAM
Wi-Fi data rates up to 72.2 Mbps
Secure boot with ECC-256 signature support
AES 128/192/256-bit hardware encryption
SHA-1, SHA-224 and SHA-256 support
True Random Number Generator (TRNG)
Public Key Accelerator (PKA)
UART, SPI, I²C, SDIO, ADC, DAC, PWM and GPIO interfaces
Universal AT command support
Secondary SDK development support
Deep sleep current as low as 12μA

Applications

Smart Home Devices
Industrial IoT Systems
Wireless Sensor Networks
Smart Lighting
Building Automation
Asset Tracking Devices
Wearable Electronics
Connected Appliances
Remote Monitoring Systems
Embedded Wireless Products

Technical Specifications

Parameter	Specification
Brand	Ai-Thinker
Model	Ai-WB2-13
Chipset	BL602
CPU	32-bit RISC Processor
RAM	276KB
Flash Memory	4MB Default
Wi-Fi Standard	IEEE 802.11 b/g/n
Bluetooth	BLE 5.0 + Bluetooth Mesh
Frequency Range	2400MHz – 2483.5MHz
Maximum Data Rate	72.2 Mbps
Package	SMD-18
Antenna	Onboard PCB Antenna
Dimensions	14 × 18 mm
Operating Voltage	2.7V – 3.6V
Supply Current	≥500mA
Deep Sleep Current	12μA
GPIO	11
Interfaces	UART, GPIO, ADC, PWM, I²C, SPI
UART Baud Rate	115200bps (Default)
Security	WPS, WEP, WPA, WPA2 Personal, WPA2 Enterprise, WPA3
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +125°C

Why Choose Ai-WB2-13?

The Ai-WB2-13 combines Wi-Fi and Bluetooth BLE 5.0 connectivity in a compact low-power module designed for commercial and industrial IoT deployments. With robust security features, Bluetooth Mesh support, extensive peripheral interfaces, and flexible development options, it helps OEMs accelerate product development while maintaining reliable wireless performance.

Documentation

https://en.ai-thinker.com/Uploads/file/20220930/20220930121135_29921.pdf
