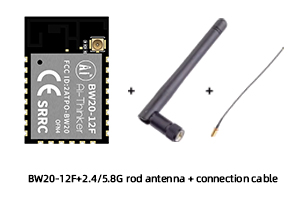

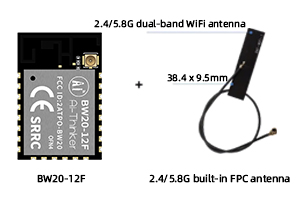

Ai-Thinker BW20-12F Dual-Band Wi-Fi + Bluetooth 5.0 Module

Ai-Thinker BW20-12F Dual-Band Wi-Fi + Bluetooth 5.0 Module | RTL8711 Wireless SoC Module (External Antenna Version) - Image 3

Ai-Thinker BW20-12F Dual-Band Wi-Fi + Bluetooth 5.0 Module | RTL8711 Wireless SoC Module (External Antenna Version) - Image 4

Ai-Thinker BW20-12F Dual-Band Wi-Fi + Bluetooth 5.0 Module | RTL8711 Wireless SoC Module (External Antenna Version) - Image 5

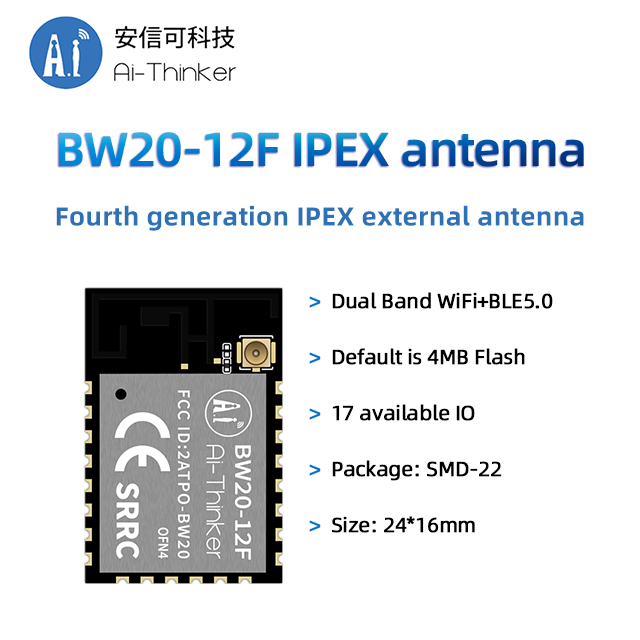

BW20-12F is a high-performance dual-band Wi-Fi and Bluetooth 5.0 wireless module from Ai-Thinker based on the Realtek RTL8711 series chipset. Supporting both 2.4GHz and 5GHz Wi-Fi, BLE Long Range, Bluetooth Mesh, and a dual-core MCU architecture, it is ideal for industrial IoT, smart home devices, gateways, automation, and embedded wireless applications.

Description

The BW20-12F is a next-generation dual-band Wi-Fi and Bluetooth Low Energy (BLE 5.0) module developed by Ai-Thinker using the Realtek RTL8711 series wireless SoC. Unlike conventional 2.4GHz-only wireless modules, BW20-12F supports both 2.4GHz and 5GHz IEEE 802.11 a/b/g/n Wi-Fi, allowing higher reliability and reduced interference in demanding wireless environments.

The module integrates a powerful dual-core MCU architecture consisting of a high-performance ARM V8.1 (Cortex-M4F compatible) processor operating up to 330MHz and a low-power ARM V8M (Cortex-M0 compatible) processor. Combined with BLE 5.0, BLE Long Range support, hardware security acceleration, and multiple peripheral interfaces, BW20-12F provides an excellent platform for commercial and industrial IoT products.

Designed for OEM integration, the module supports secondary development under Linux, secure wireless communication, and flexible hardware expansion through abundant GPIO and peripheral interfaces.

Features

RTL8711 series dual-core wireless SoC
Dual-band Wi-Fi (2.4GHz & 5GHz)
IEEE 802.11 a/b/g/n support
Bluetooth 5.0
BLE Long Range support
Bluetooth high-power mode
Bluetooth Mesh support
Dual-core MCU up to 330MHz
HT20 / HT40 channel support
Hardware encryption engine
Link-layer privacy support
Wi-Fi and Bluetooth shared antenna
17 flexible GPIOs
Secondary development support
Linux development environment support

Applications

Industrial IoT
Smart Home Devices
Building Automation
Wireless Gateways
Smart Appliances
Energy Management Systems
Security & Surveillance
Asset Tracking
Edge Computing Devices
Embedded Wireless Controllers

Why Choose BW20-12F?

BW20-12F delivers enterprise-grade wireless connectivity by combining dual-band Wi-Fi, Bluetooth 5.0, BLE Long Range, powerful dual-core processing, and advanced security into a compact module. Its excellent RF performance, low-power architecture, and rich peripheral interfaces make it an ideal choice for OEMs developing next-generation connected products requiring reliable high-speed wireless communication

Technical Specifications

Parameter	Specification
Brand	Ai-Thinker
Model	BW20-12F
Chipset	Realtek RTL8711 Series
CPU	Dual-Core ARM V8.1 (Cortex-M4F Compatible) + ARM V8M (Cortex-M0 Compatible)
Maximum CPU Frequency	330MHz
Wi-Fi Standard	IEEE 802.11 a/b/g/n
Wi-Fi Frequency	2.4GHz & 5GHz
Channel Width	HT20 / HT40
Bluetooth	Bluetooth 5.0
BLE Long Range	Supported
Bluetooth Mesh	Supported
Wi-Fi & BLE Antenna	Shared Onboard PCB Antenna
Operating Voltage	3.0V – 3.6V
GPIO	17 Flexible GPIOs
Interfaces	UART, SPI, I²C, PWM, ADC, GPIO
Hardware Security	Hardware Encryption Engine
Development Support	Linux SDK, Secondary Development
Operating Temperature	-40°C to +85°C
