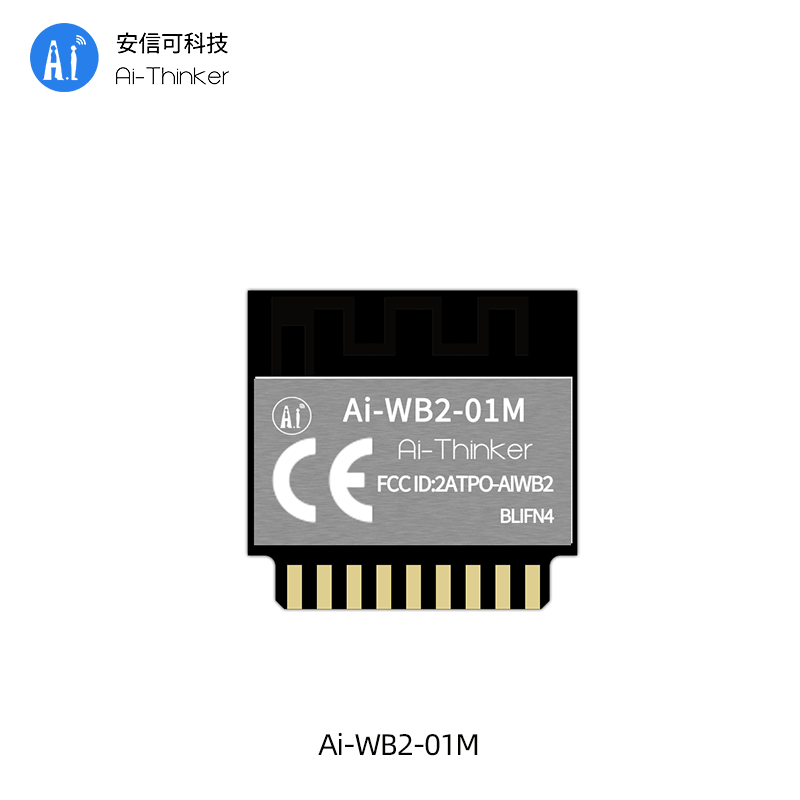

Ai-Thinker Ai-WB2-01M Wi-Fi Bluetooth BLE 5.0 BL602 Combo Module for IoT and Embedded Wireless Applications
Ai-Thinker Ai-WB2-01M Wi-Fi + Bluetooth BLE 5.0 Module | BL602 Low Power Combo Module - Image 2
Ai-Thinker Ai-WB2-01M Wi-Fi + Bluetooth BLE 5.0 Module | BL602 Low Power Combo Module - Image 3
Ai-Thinker Ai-WB2-01M Wi-Fi + Bluetooth BLE 5.0 Module | BL602 Low Power Combo Module - Image 4
Ai-Thinker Ai-WB2-01M Wi-Fi Bluetooth BLE 5.0 BL602 Combo Module for IoT and Embedded Wireless Applications

Ai-Thinker Ai-WB2-01M is a compact Wi-Fi + Bluetooth BLE 5.0 combo module based on the BL602 chipset. Designed for IoT, smart home devices, wearable electronics, industrial automation, and embedded wireless applications requiring low power consumption and dual wireless connectivity.

SKU: AITWB201M Category: Tags: , , , , , , , , , , , , , Brand:

Description

Ai-Thinker Ai-WB2-01M Wi-Fi + BLE Combo Module

Ai-WB2-01M is a dual-mode wireless communication module developed by Ai-Thinker and powered by the BL602 processor platform. It supports both IEEE 802.11 b/g/n Wi-Fi and Bluetooth Low Energy 5.0, making it suitable for embedded systems requiring compact size and efficient wireless connectivity.

The module integrates a low-power 32-bit RISC CPU, onboard RF circuitry, security engine, memory, and multiple interfaces including UART, SPI, I2C, ADC, PWM and GPIO. It supports rapid product development using SDK environments and AT command firmware.

Its DIP package and PCB antenna design allow easy integration into production systems and prototypes.

Features

  • BL602 low-power chipset
  • Wi-Fi IEEE 802.11 b/g/n support
  • Bluetooth BLE 5.0 + Bluetooth Mesh
  • Integrated Wi-Fi + BLE coexistence
  • Low power operation with deep sleep mode
  • Secure boot support
  • AES hardware encryption engine
  • TRNG random number generator

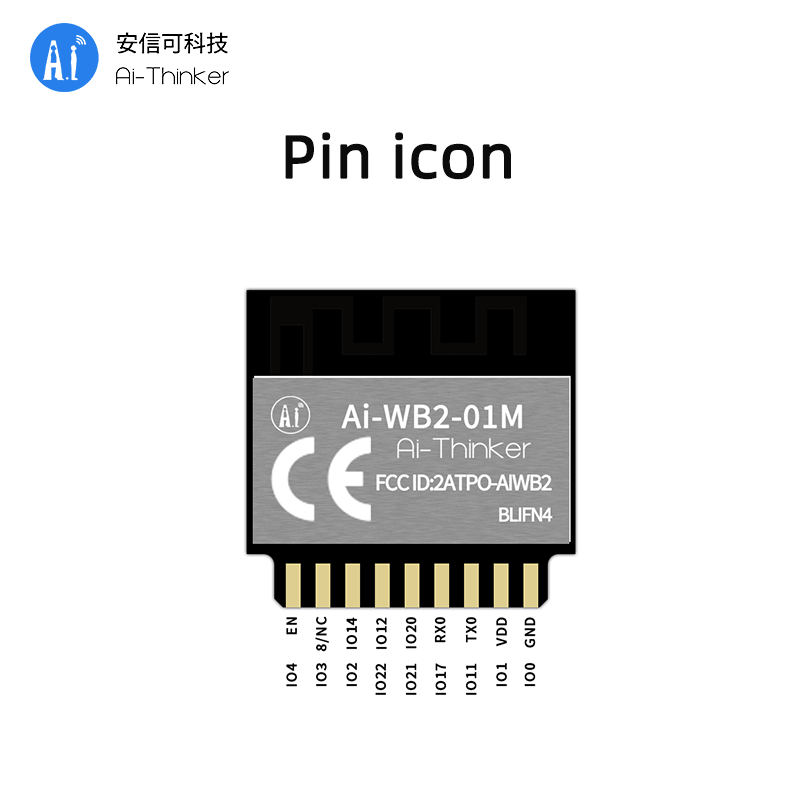

  • UART, SPI, I2C, ADC, PWM and GPIO support
  • Universal AT commands
  • SDK support for secondary development
  • DIP-18 package for easy hardware integration

Applications

  • Smart home products
  • Industrial IoT
  • Wireless sensor nodes
  • Wearable electronics
  • Embedded wireless products
  • Asset tracking systems
  • Home automation
  • Connected appliances
  • Remote monitoring
  • IoT gateways

Why Choose Ai-WB2-01M?

Ai-WB2-01M combines Wi-Fi and BLE into a compact low-power module while maintaining flexible interface options and industrial integration capability. It is well suited for OEMs developing connected products.

Technical Specifications

Parameter Specification
Brand Ai-Thinker
Model Ai-WB2-01M
Core Chip BL602
CPU 32-bit RISC
RAM 276KB
Wireless Wi-Fi + BLE
Wi-Fi IEEE 802.11 b/g/n
Bluetooth BLE 5.0 + Mesh
Frequency 2400–2483.5MHz
Package DIP-18
Antenna On-board PCB antenna

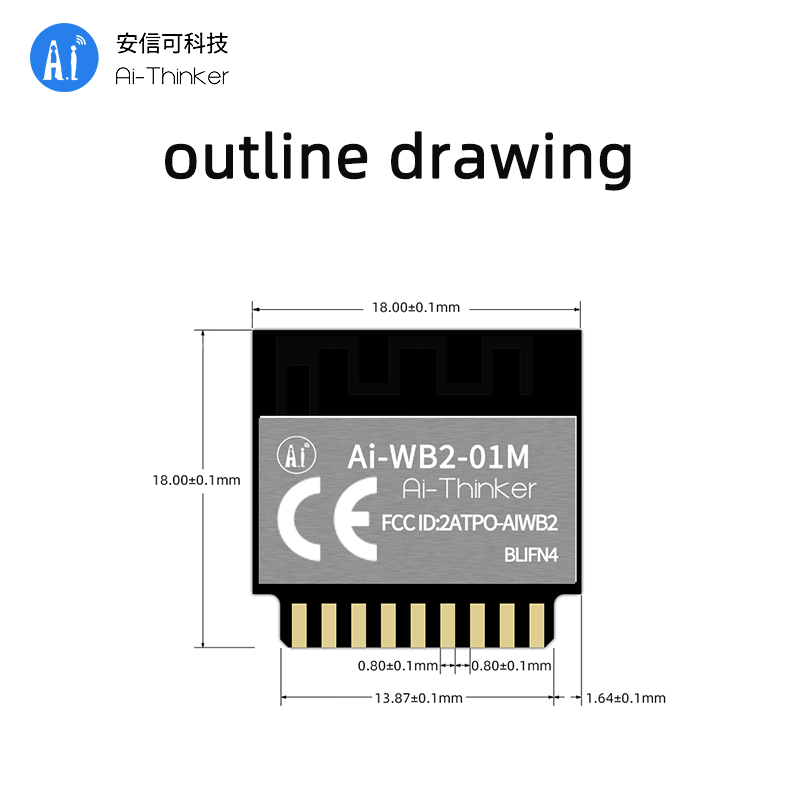

Size 18 × 18 × 2.8mm
Interfaces UART / SPI / I2C / ADC / PWM / GPIO / SDIO
GPIO 14
Security WPS / WEP / WPA / WPA2 / WPA3
Operating Voltage 2.7V–3.6V
Supply Current ≥500mA
Deep Sleep Current 12μA
UART Rate 115200bps
Operating Temperature −40°C to +85°C
Flash 2MB default, expandable

Documentation

https://aithinker-static.oss-cn-shenzhen.aliyuncs.com/docs/_media_old/ai-wb2-01m_v1.0.2_product_specification_en.pdf
