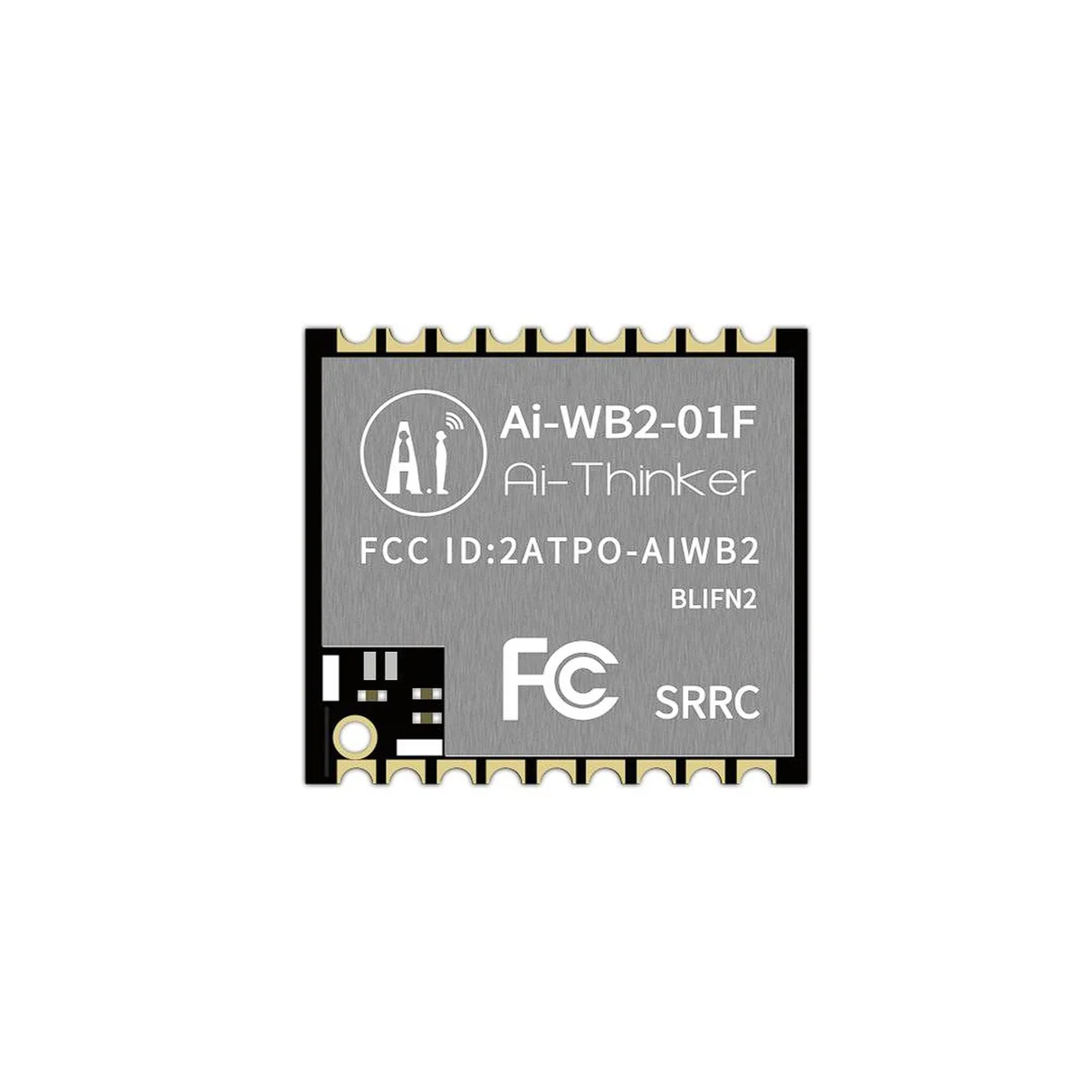

Ai-Thinker Ai-WB2-01F Wi-Fi + Bluetooth BLE 5.0 Module

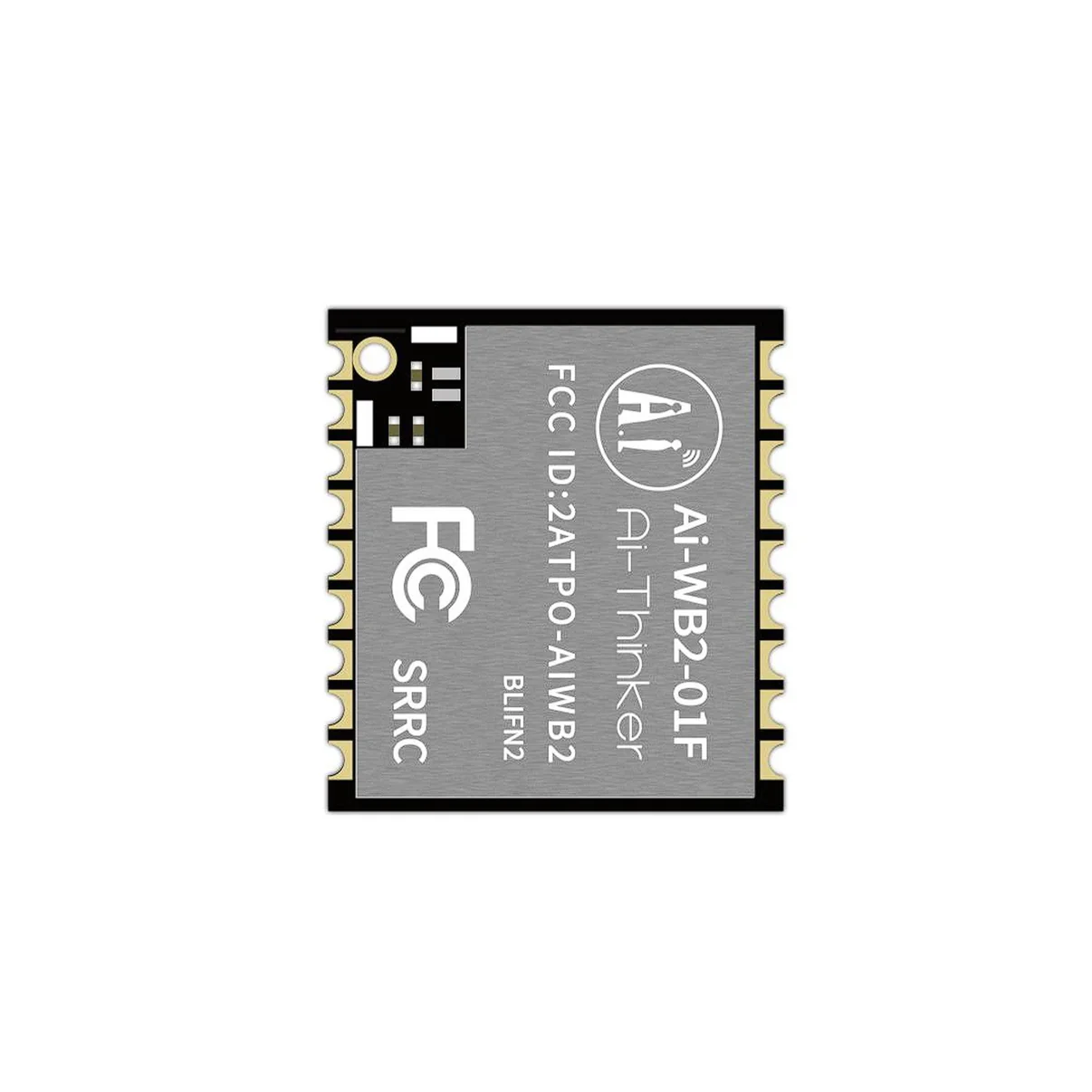

Ai-Thinker Ai-WB2-01F Wi-Fi Bluetooth BLE 5.0 BL602 Low Power Wireless Combo Module

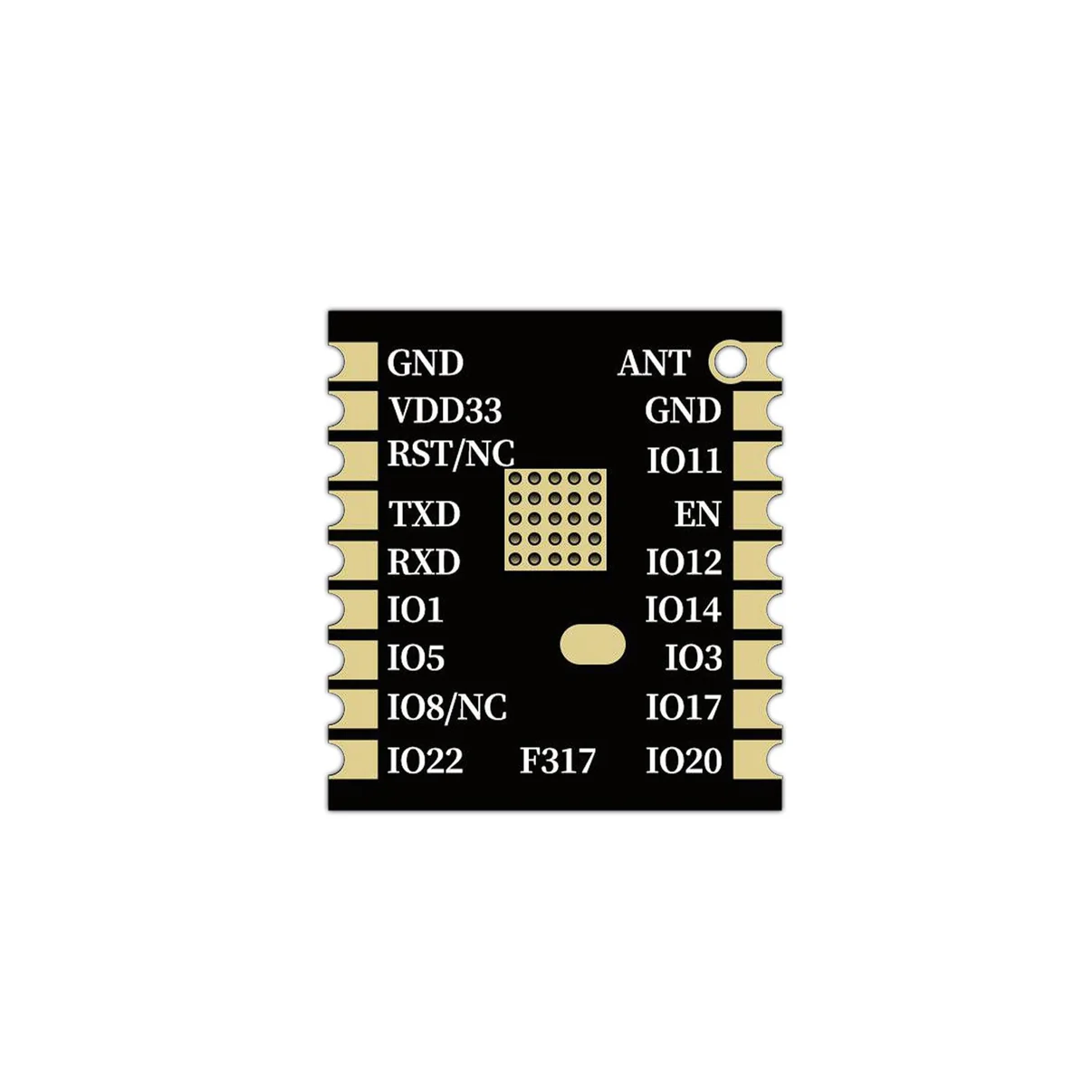

Ai-Thinker Ai-WB2-01F Wi-Fi + Bluetooth BLE 5.0 Module | BL602 Low Power Combo Module - Image 3

Ai-Thinker Ai-WB2-01F Wi-Fi + Bluetooth BLE 5.0 Module | BL602 Low Power Combo Module - Image 4

Ai-WB2-01F is a compact Wi-Fi and Bluetooth BLE 5.0 combo module from Ai-Thinker based on the BL602 chipset. Featuring an SMD-18 package, low power consumption, Bluetooth Mesh support, advanced security features, and rich peripheral interfaces, it is ideal for IoT devices, smart home systems, wearable electronics, industrial automation, and embedded wireless applications.

Category: Combo Modules Tags: Ai-Thinker, AiWB201F, BL602, BLE 5.0, Bluetooth Mesh, Bluetooth Module, Combo Module, Embedded Wireless, Industrial IoT, IoT Connectivity, Low Power Module, Smart Home Module, WiFi Module, Wireless IoT Module Brand: Ai Thinker

Description

The Ai-WB2-01F is a high-performance Wi-Fi and Bluetooth Low Energy (BLE 5.0) wireless module developed by Ai-Thinker and powered by the BL602 chipset. It supports IEEE 802.11 b/g/n Wi-Fi and Bluetooth Mesh networking, making it suitable for modern IoT and embedded applications requiring reliable wireless connectivity.

The module integrates a low-power 32-bit RISC processor, 276KB RAM, Wi-Fi MAC/BB/RF/PA/LNA, Bluetooth functionality, and multiple peripheral interfaces including SPI, UART, I²C, PWM, ADC, DAC, and GPIO. Its ultra-low power design and compact SMD-18 package make it ideal for both battery-powered and mains-powered connected devices.

Supporting AT commands and SDK-based secondary development, the Ai-WB2-01F enables rapid integration into commercial, industrial, and consumer IoT products.

Features

BL602 low-power wireless chipset
IEEE 802.11 b/g/n Wi-Fi support
Bluetooth BLE 5.0 and Bluetooth Mesh
32-bit RISC CPU with 276KB RAM
Wi-Fi data rates up to 72.2 Mbps
Secure boot with ECC-256 signature support
AES 128/192/256-bit hardware encryption
SHA-1, SHA-224 and SHA-256 support
True Random Number Generator (TRNG)
Public Key Accelerator (PKA)
SPI, UART, I²C, PWM, ADC, DAC and GPIO interfaces
Deep sleep current as low as 12μA
Universal AT command support
SDK support for secondary development
Compact SMD-18 package

Applications

Smart Home Devices
Industrial IoT Systems
Wearable Electronics
Wireless Sensor Networks
Smart Lighting
Home Automation Products
Asset Tracking Devices
Connected Appliances
Remote Monitoring Systems
Embedded Wireless Products

Technical Specifications

Parameter	Specification
Brand	Ai-Thinker
Model	Ai-WB2-01F
Chipset	BL602
CPU	32-bit RISC Processor
RAM	276KB
Flash Memory	2MB Default
Wi-Fi Standard	IEEE 802.11 b/g/n
Bluetooth	BLE 5.0 + Bluetooth Mesh
Frequency Range	2400MHz – 2483.5MHz
Maximum Data Rate	72.2 Mbps
Package	SMD-18
Antenna	Half-Hole / PCB Antenna
Operating Voltage	3.3V
Deep Sleep Current	12μA
Output Power	16dBm
Receiver Sensitivity	-96dBm
Transmit Current	314mA
Receive Current	63mA
Interfaces	SPI, UART, I²C, PWM, ADC, DAC, GPIO
Security	WPS, WEP, WPA, WPA2 Personal, WPA2 Enterprise, WPA3
Operating Temperature	-40°C to +85°C

Why Choose Ai-WB2-01F?

The Ai-WB2-01F combines Wi-Fi and Bluetooth BLE 5.0 connectivity in a compact low-power module designed for modern IoT deployments. With Bluetooth Mesh support, advanced security features, multiple interfaces, and flexible development options, it helps OEMs accelerate product development while maintaining reliable wireless performance and low power consumption.

Documentation

https://aithinker-static.oss-cn-shenzhen.aliyuncs.com/docs/_media_old/ai-wb2-01f_v1.0.2_product_specification_en.pdf
