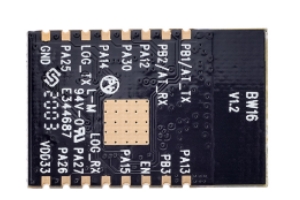

Ai-Thinker BW16 Dual-Band Wi-Fi + Bluetooth 5.0 Module | RTL8720DN Wireless Module - Image 3

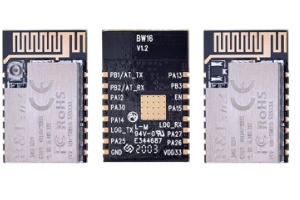

Ai-Thinker BW16 Dual-Band Wi-Fi + Bluetooth 5.0 Module | RTL8720DN Wireless Module - Image 4

BW16 is a high-performance dual-band Wi-Fi and Bluetooth 5.0 module from Ai-Thinker based on the Realtek RTL8720DN chipset. Supporting both 2.4GHz and 5GHz Wi-Fi, Bluetooth LE 5.0, advanced security, and low-power operation, it is ideal for industrial IoT, smart home devices, wireless gateways, and embedded connectivity applications.

Description

The Ai-Thinker BW16 is a dual-band wireless communication module built around the Realtek RTL8720DN SoC. Unlike conventional 2.4GHz-only wireless modules, BW16 supports both 2.4GHz and 5GHz IEEE 802.11 a/b/g/n Wi-Fi, providing improved wireless performance in congested environments while maintaining Bluetooth Low Energy 5.0 connectivity.

The module integrates a high-performance ARM v8 MCU (Cortex-M4F compatible) together with a low-power ARM v8M MCU (Cortex-M0 compatible), delivering excellent processing capability for IoT edge devices. Built-in hardware encryption engines, TrustZone-M security, and multiple low-power operating modes make BW16 suitable for commercial and industrial wireless products.

With extensive peripheral interfaces including UART, SPI, I²C, PWM, ADC, GPIO, and SDIO, BW16 enables rapid integration into smart home products, industrial automation systems, wireless sensors, gateways, and embedded controllers.

Features

Realtek RTL8720DN dual-core wireless chipset
Dual-band Wi-Fi (2.4GHz & 5GHz)
IEEE 802.11 a/b/g/n support
Bluetooth Low Energy 5.0
ARM Cortex-M4F compatible high-performance MCU
ARM Cortex-M0 compatible low-power MCU
HT20 / HT40 support
Multiple low-power operating modes
Embedded AES, DES and SHA hardware engine
TrustZone-M security architecture
Secure Boot support
UART, SPI, I²C, ADC, PWM, GPIO and SDIO interfaces
SWD debugging support
Compact SMT module with onboard PCB antenna

Applications

Industrial IoT
Smart Home Devices
Building Automation
Wireless Gateways
Smart Appliances
Security Systems
Asset Tracking
Remote Monitoring
Embedded Wireless Controllers
Edge AI & IoT Devices

Why Choose BW16?

BW16 is an excellent choice for applications requiring reliable wireless connectivity in crowded RF environments. With support for both 2.4GHz and 5GHz Wi-Fi, Bluetooth 5.0, powerful dual-core processing, advanced security, and low-power operation, it provides OEMs with a robust platform for next-generation connected products.

Technical Specifications

Parameter	Specification
Brand	Ai-Thinker
Model	BW16
Chipset	Realtek RTL8720DN
CPU	ARM v8 (Cortex-M4F Compatible) + ARM v8M (Cortex-M0 Compatible)
Wi-Fi Standard	IEEE 802.11 a/b/g/n
Wi-Fi Frequency	2.4GHz & 5GHz
Bluetooth	Bluetooth Low Energy 5.0
Wi-Fi Channel Width	HT20 / HT40
Operating Voltage	3.0V – 3.6V
RF Output Power	Up to 16dBm
Receive Sensitivity	Up to -92dBm
Data Rate	Up to 54Mbps
Antenna	Onboard PCB Antenna
Dimensions	24 × 16 × 3 mm
Interfaces	UART, SPI, I²C, SDIO, PWM, ADC, GPIO
Security	AES, DES, SHA Hardware Engine, TrustZone-M, Secure Boot
Debug Interface	SWD
Low Power Modes	Beacon Listening, Low Power Receive, Pending Mode
Operating Temperature	-20°C to +70°C
